Carefor Upgraded CF‑60PP SMART Handheld Air Quality Monitor,16‑in‑1Air Pollution Detector

FAQ

General Product Overview

CF-60 PP Smart handheld monitor: Includes all the features of the standard model but adds Wi-Fi connectivity. This allows for real-time remote monitoring via a mobile app, cloud data storage, and push notifications for air quality alerts.

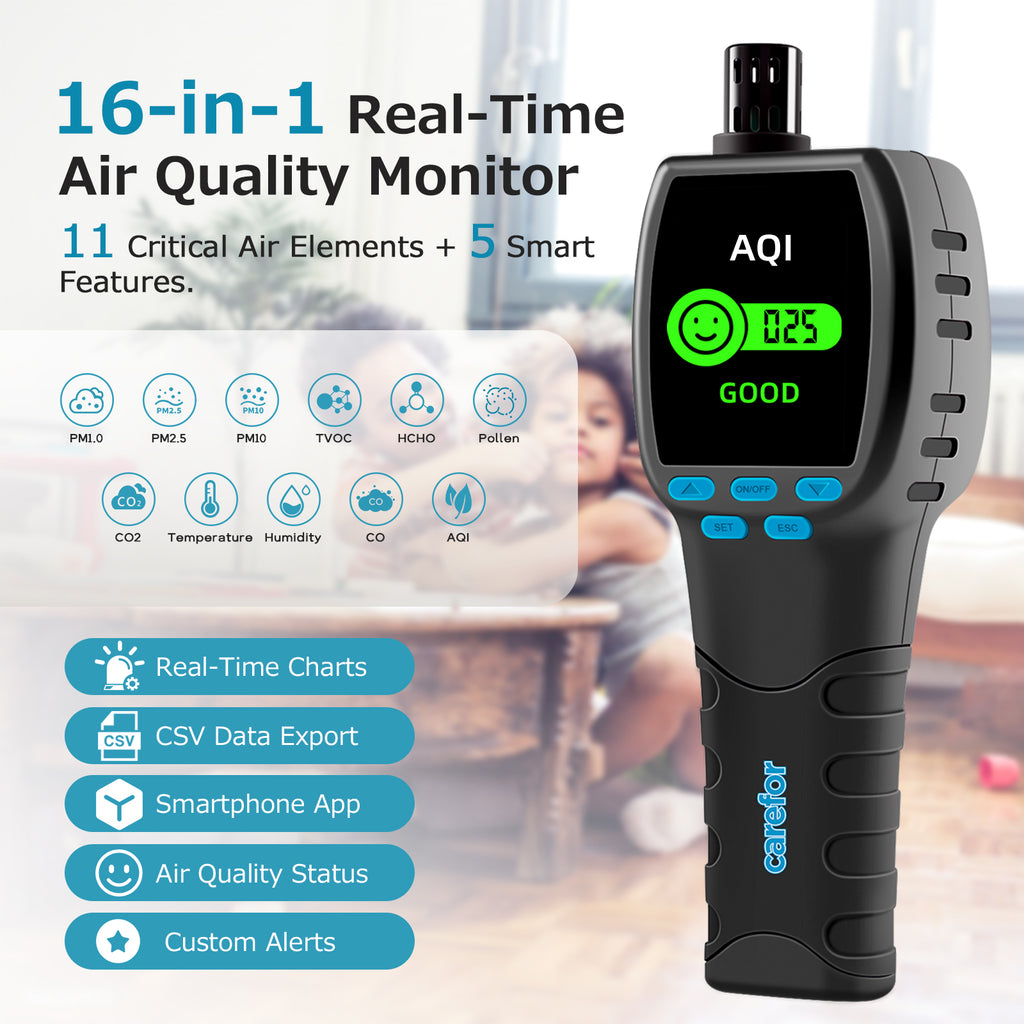

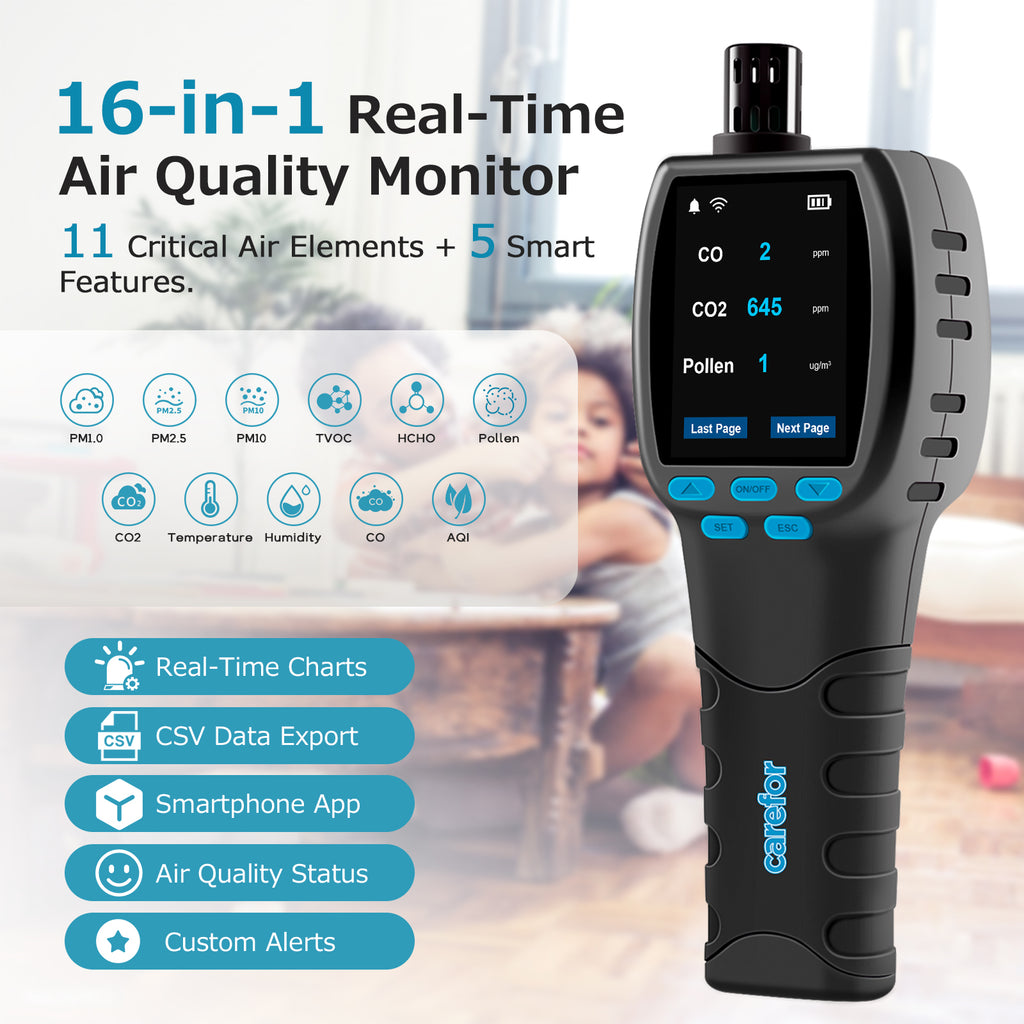

Q:What pollutants does this monitor detect?

A: This model is "16-in-1" air quality monitor that track:

Gases: CO2 (Carbon Dioxide), CO (Carbon Monoxide), HCHO (Formaldehyde), TVOCs (Total Volatile Organic Compounds).

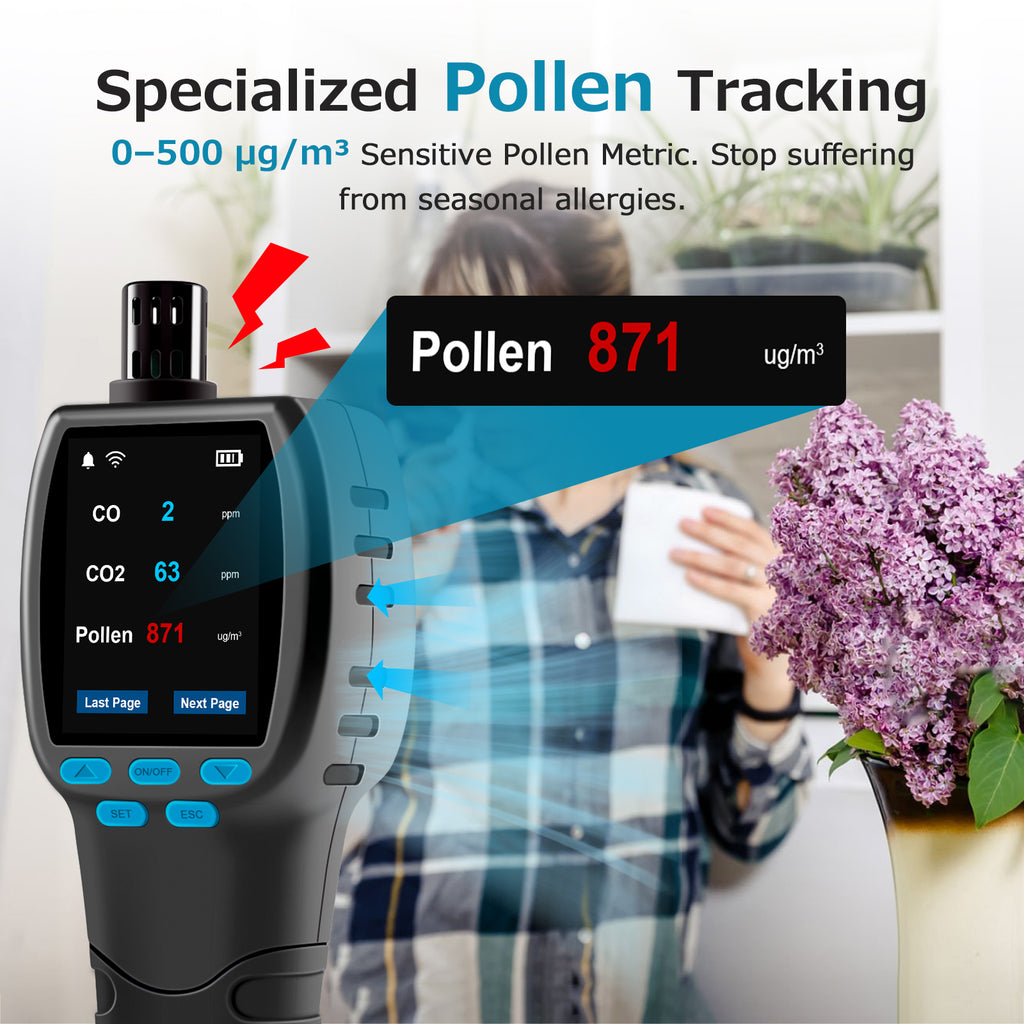

Particulates: Portable PM1.0, PM2.5, PM10 sensor, and a specialized Pollen sensor.Best air quality monitor for seasonal allergies.

Environment: Temperature, Humidity, and AQI (Air Quality Index).Best 16-in-1 portable air quality tester 2026.

Setup & Calibration

Q1: Do I need to calibrate the device before the first use?

A1: Yes. For the best accuracy, it is recommended to place the device in a well-ventilated area (like a windowsill or outdoors) for 4 to 6 hours upon first use. This allows the sensors to establish a clean-air baseline.



Q2: How do I calibrate the CO2 and TVOC sensors later?

A2: The CF-60 PP Smart air quality monitor with Wi-Fi supports both automatic and manual calibration.

• Automatic: The device recalibrates itself based on the lowest readings detected over a period of time.
• Manual: You can trigger a manual calibration via the device menu settings while the unit is in a fresh air environment.

Connectivity & Data

Q1: How do I view historical data on the device?

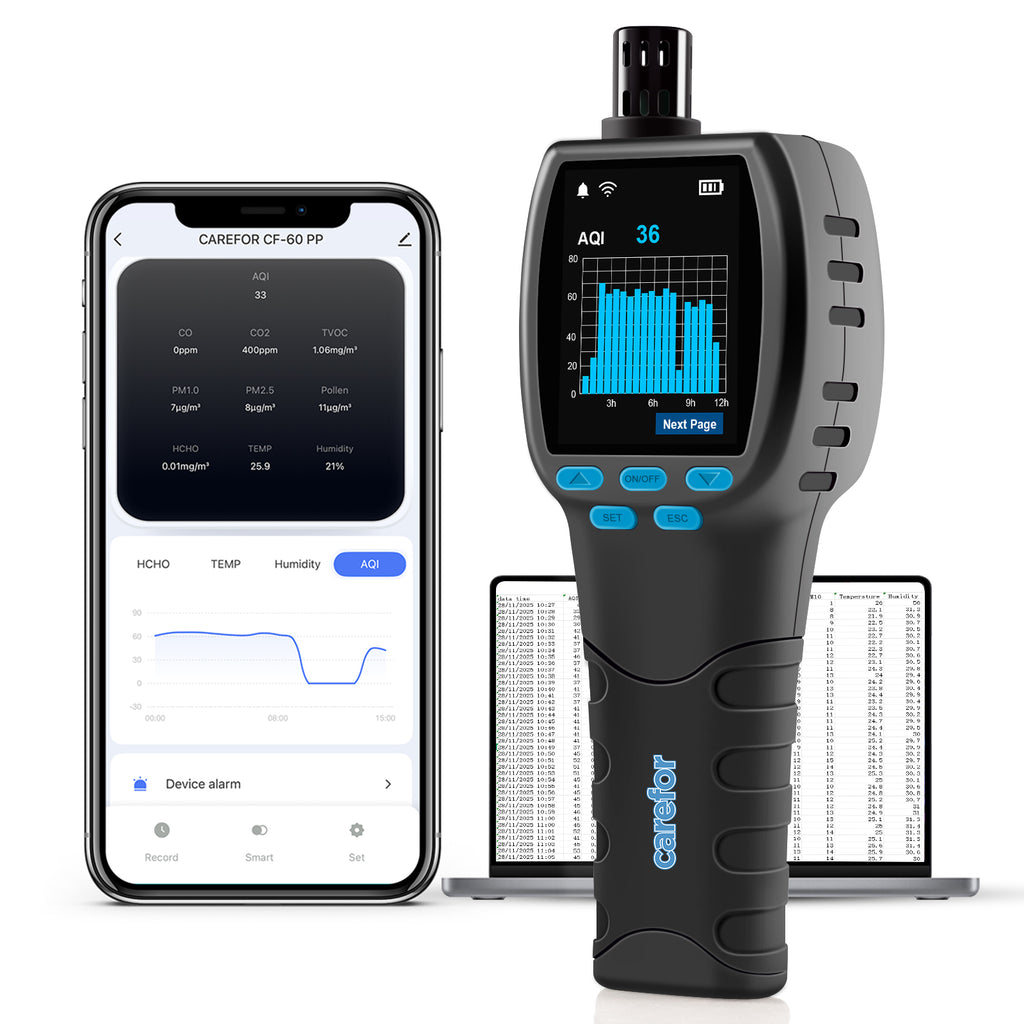

A1: This model feature Advanced On-Device Charting. You can toggle between 4-minute, 2-hour, 6-hour, and 12-hour timelines directly on the high-resolution color screen to see recent spikes without needing a computer.



Q2: Can I export data for professional reports?

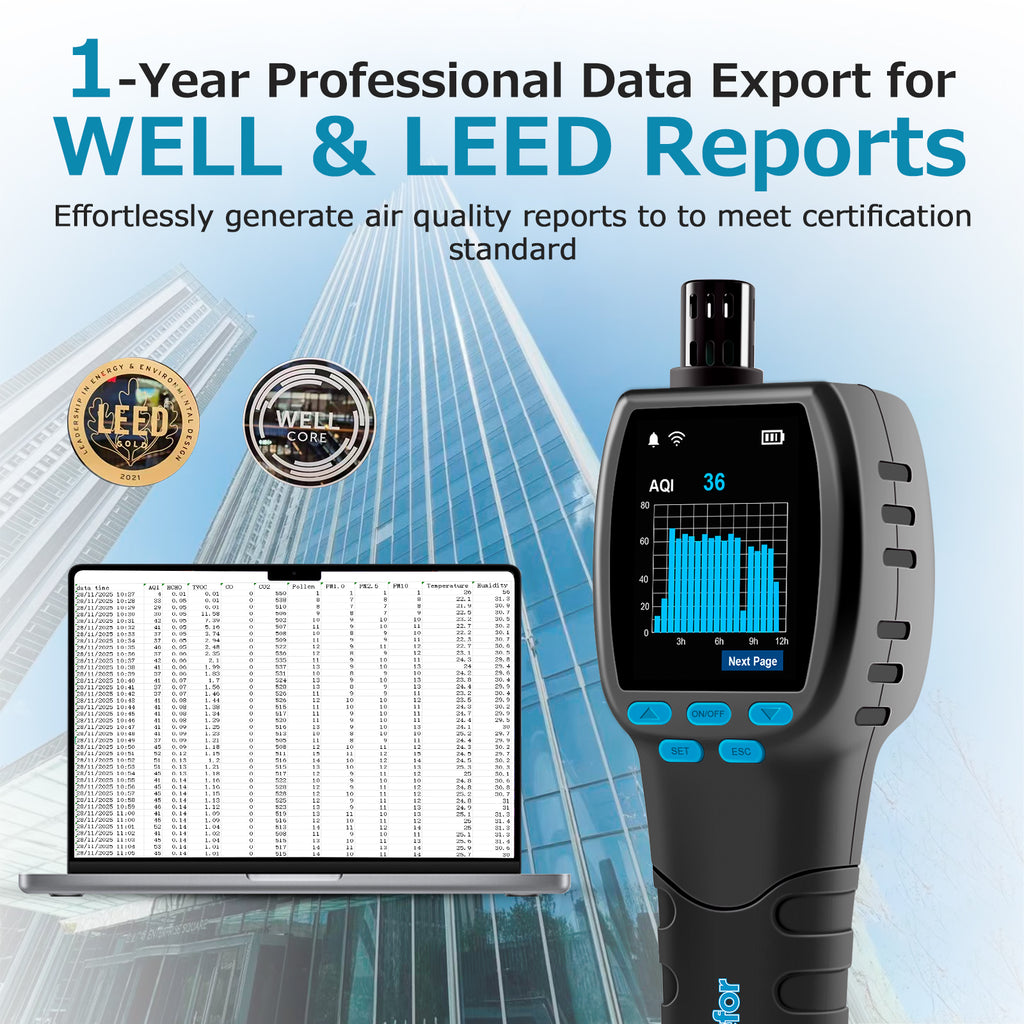

A2: Yes. CF-60 PP Smart handheld monitor with PDF reports allow you to export up to one year of historical data via the USB-C port. You can generate CSV or PDF files, which is useful for facility managers or contractors providing "Before & After" evidence of air quality improvements.



Q3: What app does the CF-60 PP Smart air quality monitor with Wi-Fi use?

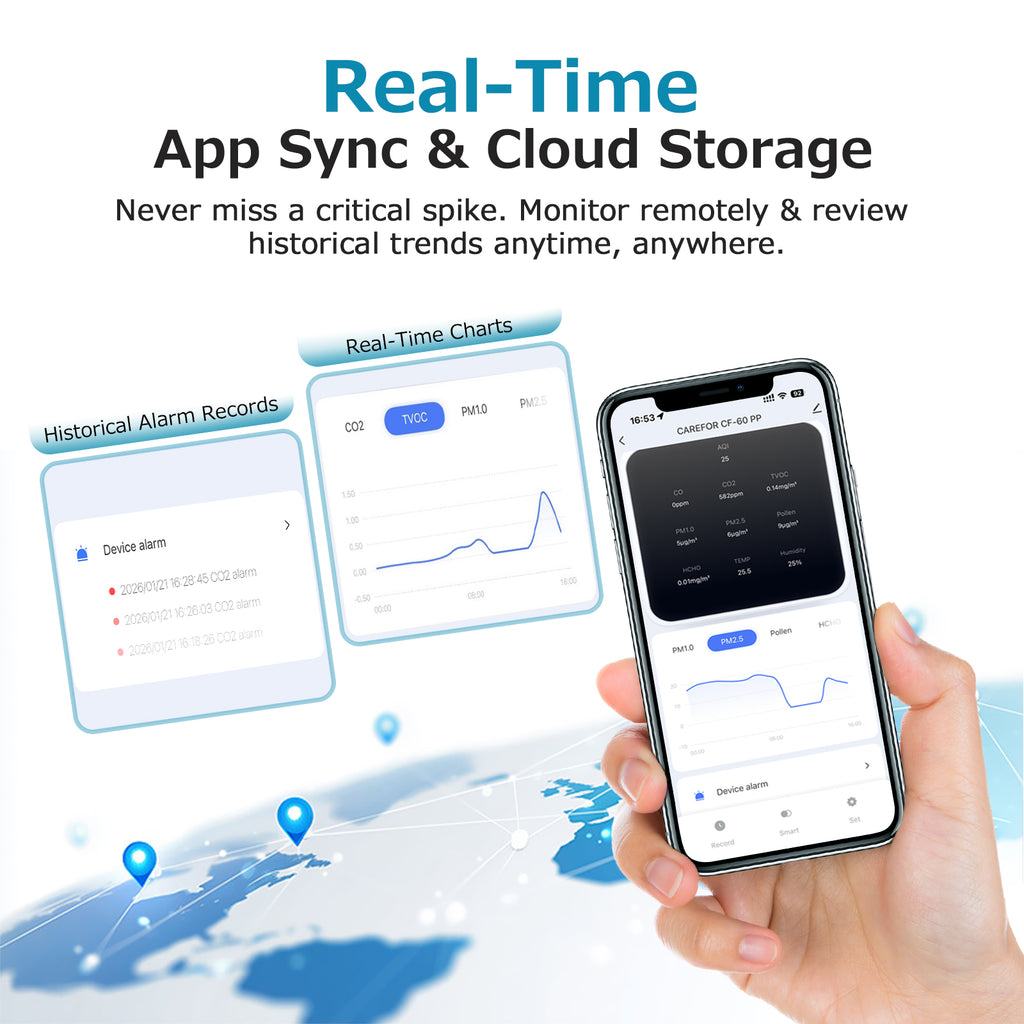

A3: The Smart version connects via Wi-Fi to the "Tuya Smart" or "Smart Life" app (available on iOS and Android). This enables remote viewing and historical cloud syncing.



Q4: Do I need a PC to see my historical trends?

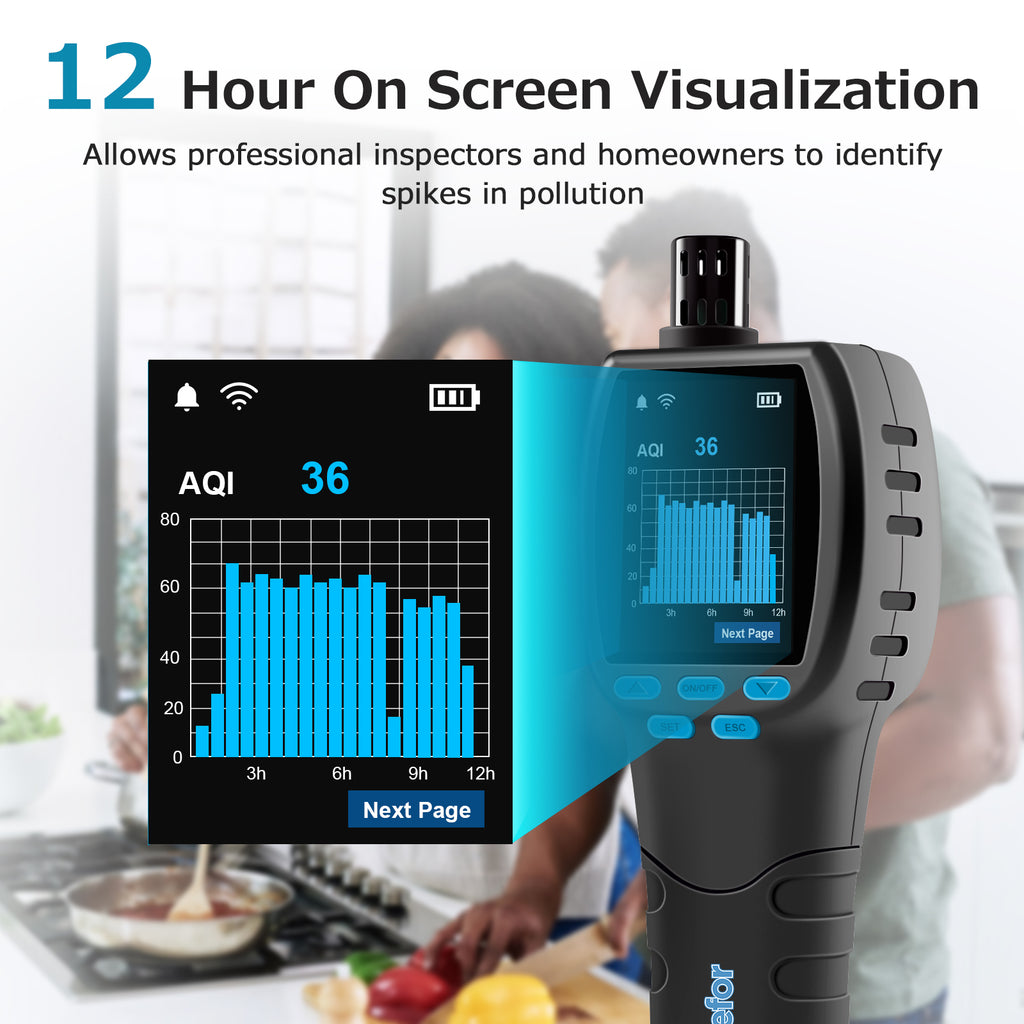

A4: No. Unlike competitors that require an app or a computer to see history, the CF-60 PP Smart handheld monitor features On-Device Data Charting. You can view a 12-hour real-time indoor air data charting directly on the color screen to identify exactly when a pollution spike occurred (e.g., during cooking or cleaning).



Q5: How does the data export work for professional reports?

A5:You can export up to one year of data via the USB-C port. The device generates CSV and PDF reports automatically. This is a critical feature for HVAC professionals or landlords who need to provide "Before & After" evidence of air quality improvements to clients.



Q6: How do I export or download my data?

A6: CF-60 PP Smart handheld monitor is formaldehyde (HCHO) tester with CSV export and professional air quality monitor with PDF reports. It supports data logging.

Manual Export: Connect the device to a PC via the USB-C port to download historical data in CSV or PDF formats.



Q7: How do I add multiple users to view data?

A7: Within the Smart Life / Tuya app, you can use the "Share Device" feature. Simply enter the email address of a family member or colleague, and they can view real-time air quality levels from their own smartphones.



Q8: Why do multiple devices produce different readings in the same room?

A8: Air is not perfectly mixed. One device may be closer to a window (higher O2/lower CO2) while another is near a person (higher CO2). Additionally, sensors have a small "margin of error" (tolerance). If two devices are within 10% of each other, they are functioning correctly. Our CF-60 PP Smart air quality monitor with Wi-Fi is the air quality monitor for property managers.

Power & Maintenance

Q1: How long does the battery last?

A1: The devices are equipped with a 4000 mAh rechargeable lithium-ion battery. On a full charge, you can expect 6 to 8 hours of continuous handheld operation. For long-term monitoring, the device should remain plugged into a USB-C power source.

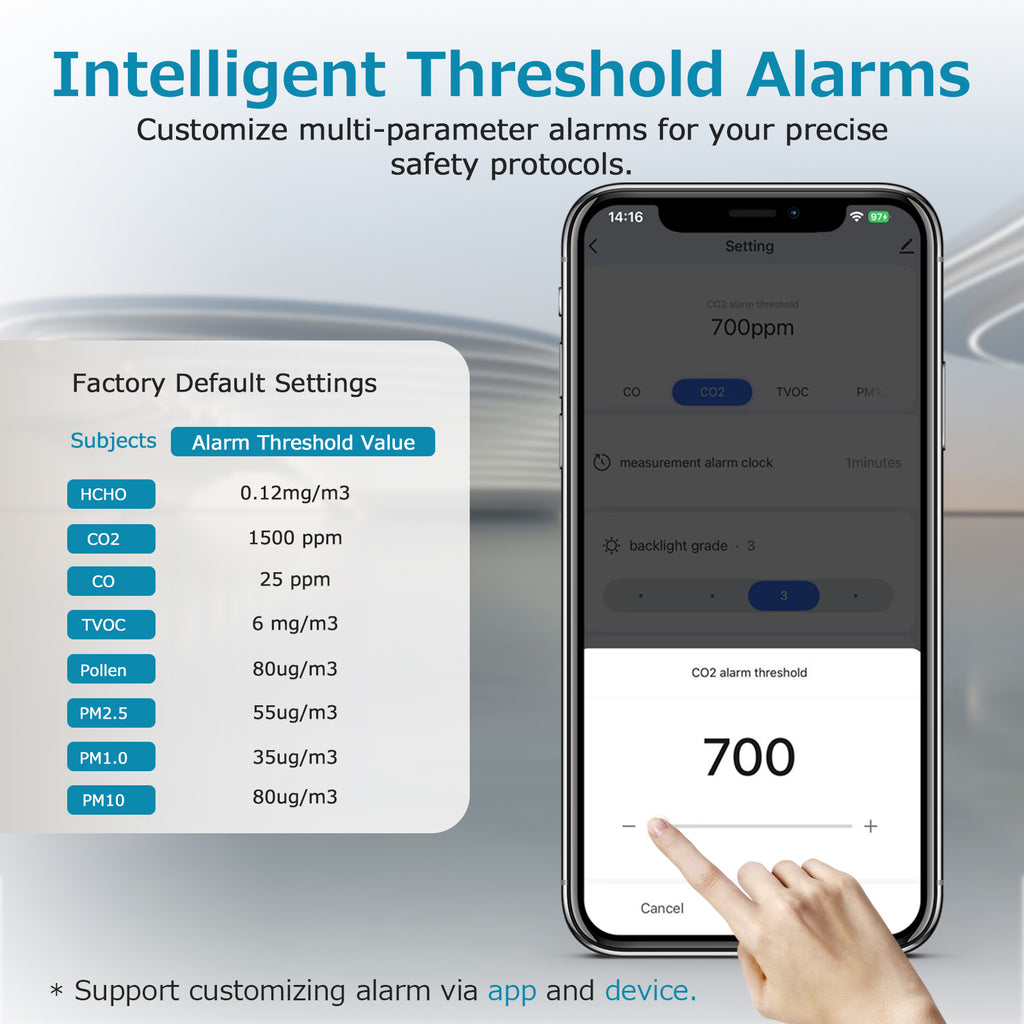

Q2: Can I change the alarm thresholds?

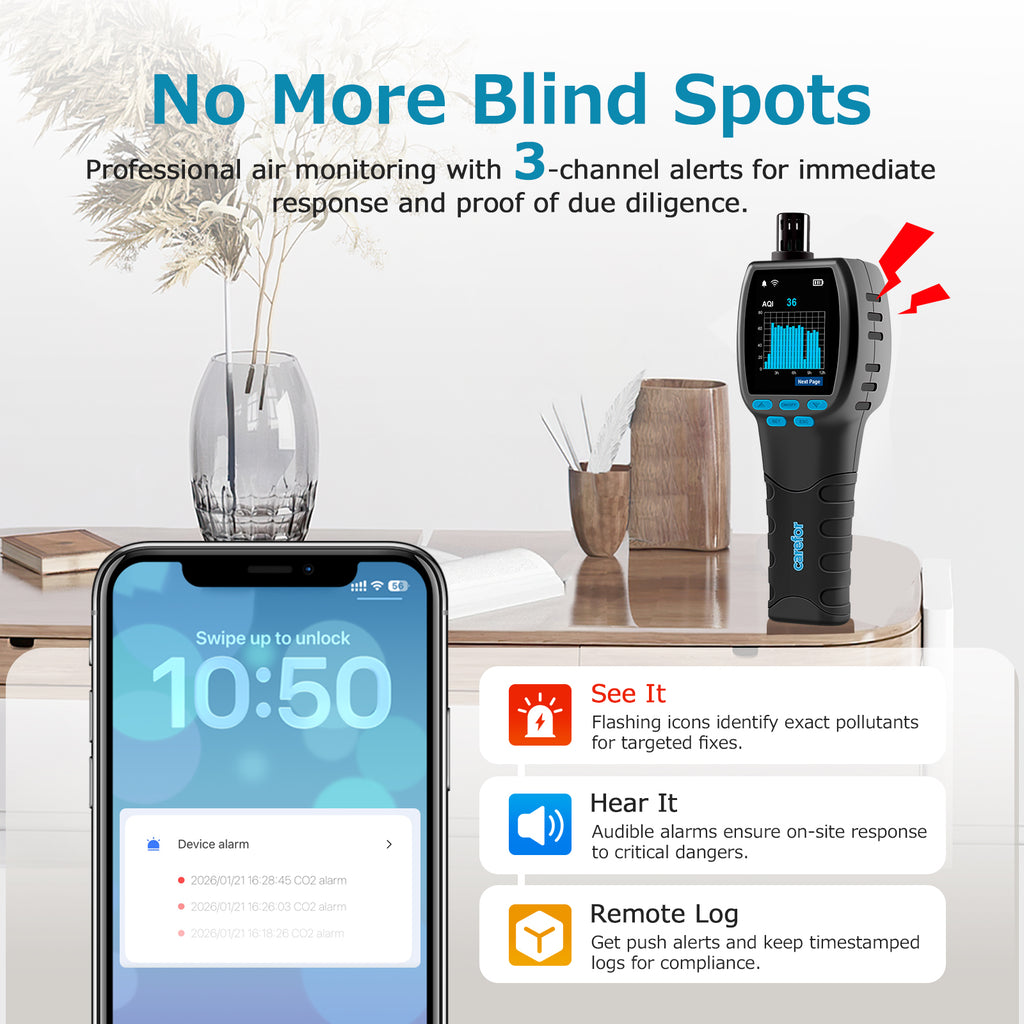

A2: Yes. Unlike many monitors with fixed limits, the CF-60 series allows you to customize alarm thresholds for CO2, PM2.5, and other metrics. If levels exceed your set limit, the device will trigger a visual and audible alert.



Q3: Does it detect mold?

A3: While it does not detect mold spores directly, it tracks PM2.5, Temperature and Humidity levels. By identifying high-humidity conditions, it helps you pinpoint environments where mold growth is likely to occur.



Q4: Can the device run 24/7?

A4: Absolutely. While the 4000mAh battery-powered CO2 detector with audible alarm provides 6–8 hours of portable use (perfect for "walking" a building to find leaks), the device is designed to be kept plugged into a USB-C charger for continuous, long-term monitoring.



Q5: Can I turn off the alarm sound?

A5: Yes. You can customize both the Visual Alert (color-coded screen) and the Audible Buzzer. The alarm thresholds are fully adjustable, so you can set them stricter for sensitive individuals (like those with asthma) or wider for industrial environments.

Sensor Accuracy & Performance

Q1: Why are my Temperature/Humidity readings slightly different than my thermostat?

A1: Air quality monitors like the CF-60 are highly sensitive. If the device is placed near a heat-generating appliance (like a laptop or sunny windowsill) or is charging, the internal battery heat may cause a slight variance. For the most accurate ambient readings, place the device in a central location away from direct heat or drafts.



Q2: How does the CO2 sensor stay accurate over time?

A2: The CF-60 uses a professional NDIR (Non-Dispersive Infrared) sensor. Unlike cheaper sensors, it features Automatic Baseline Calibration (ABC). It tracks the lowest CO2 levels over a period of days (assuming the room reaches fresh-air levels at some point, like at night) to "reset" its zero-point, ensuring long-term precision without manual intervention.



Q3: Can the CF-60 PP Smart handheld monitor detect Formaldehyde (HCHO) and Cigarette Smoke?

A3: Yes.

• Formaldehyde: This model feature a dedicated electrochemical HCHO sensor, which is more precise than a general VOC sensor for detecting off-gassing from furniture and building materials.
• Smoke: The laser-based PM2.5 sensor is highly effective at detecting the fine particulate matter found in cigarette, vape, and wildfire smoke.



Q4: What are the common sources of TVOCs in my home?

A4: Total Volatile Organic Compounds (TVOCs) come from everyday items: cleaning products, paints, new carpets, scented candles, perfumes, and even cooking oils. If you see a spike, it is often related to a recent household activity or a new piece of furniture.



Q5: Can chemicals be measured individually?

A5: The CF-60 provides a dedicated reading for Formaldehyde (HCHO) tester with CSV export. Other chemicals are grouped under the TVOC reading. While it cannot distinguish between "lemon scent" and "paint thinner," the TVOC sensor is tuned to detect a broad spectrum of harmful gases to ensure your overall safety.



Q6: What steps can I take to reduce my chemical (TVOC) readings?

A6: If your readings are high, the most effective steps are:

• Increase Ventilation: Open windows or run exhaust fans.
• Source Control: Seal or remove the off-gassing item (like a half-used paint can).
• Air Purification: Use an air purifier with a high-grade Activated Carbon filter.

Please visit our Youtube Channel for more details.

Troubleshooting

1.Why is my CO2 reading stuck at 400?

 400ppm is the global baseline for "fresh outdoor air." If your reading stays at 400 for a long time indoors, it likely means your ventilation is excellent. If you suspect it's stuck, breathe directly onto the sensor—the CO2 levels should spike immediately, confirming the sensor is active.



2.Why is my HCHO/TVOC reading high in a "clean" room?

• Sensor Saturation: If the device was recently exposed to high concentrations of alcohol (hand sanitizer), perfumes, or cleaning sprays, the sensor may be "saturated." It needs time to off-gas.
• Initial Burn-in: New devices require a 24-hour "burn-in" period powered on in a well-ventilated area to stabilize the chemical sensors.
• Baseline Drift: Sensors can shift during shipping due to temperature changes or trapped gases in the packaging.



3.How to Perform a Manual Calibration (Fresh Air Reset)

To restore accuracy, follow these steps to manually reset the "Zero Point":

1) Take the device outdoors or place it on a windowsill with an open window for 10–15 minutes. (Ensure it is a clear day with low humidity).

2) Navigate to the Settings Menu on your CF-60 PP Smart handheld monitor's screen.

3) Select Sensor Calibration (or "Zero Calibration").

4) Confirm the reset. The device will set the current outdoor air as the "0.00" baseline for HCHO and the minimum baseline for TVOC air quality sensor handeld.

5) Bring the device back indoors. The readings should now accurately reflect the difference between the outdoor and indoor environments, as with indoor air pollution meters for offices, etc.



4. My readings are "Stuck" at a specific number

• Check for Interference: Ensure the air intake vents on the back and sides of the CF-60 PP Smart handheld monitor is not blocked by dust or a protective film.
• The "Breath Test": To verify the sensor is working, breathe gently and directly into the back vents. You should see the CO2 and TVOC levels rise within seconds. If they move, the sensors are active.



5. Understanding "Cross-Sensitivity"

It is important to note that HCHO sensors can sometimes react to other strong gases.

• Alcohol/Ethanol: Using alcohol-based wipes near the device will cause a temporary "false positive" spike in Formaldehyde readings.
• Cooking Fumes: Frying oils and smoke can saturate the TVOC sensor.
• Solution: Always wait 30 minutes after cleaning or cooking for the air to settle before taking a "definitive" reading.

Download

CF-60 PP SMART User Manual
